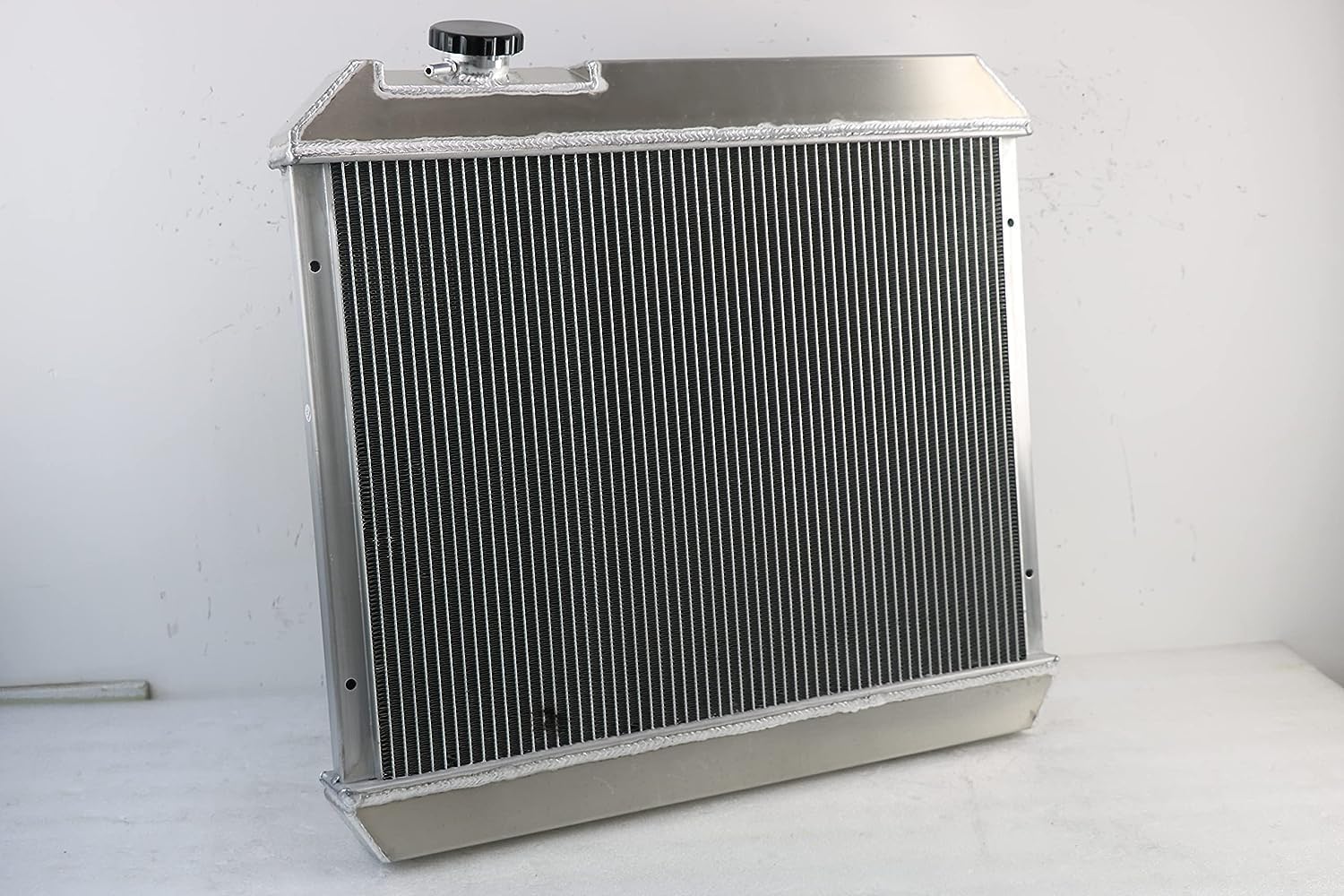

4 Row Aluminum Radiator Replacement for 1961-1966 Chevy C10 C20 C30 K10 K20 Panel Pickup Suburban GMC 1000 1500 2500 G1000 Series Oldsmobile Cutlass F85 Pontiac Radiators Shroud Fan Relay

Radiator Size: Row: 4 Row-Core Material: Full Aluminum Core Size: 17-1/2"H x 25-1/4"W x 2 3/4"T Overall Size: 23-3/8" H x 25-1/2" W Upper inlet: 1-3/4" located on the DRIVER side. Lower outlet: 1-3/4" located on PASSENGER side. Trans cooler: BUILD-IN Mount System: Saddle Mount Fans Details： Maximum Fan CFM: 2000±200 cfm Fan Diameter (in): 16.050" Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Vehicle Fitment: Compatible For Oldsmobile 1961 1962 Olds Dynamic Compatible For 63-66 CHEVY TRUCK PICKUP SUBURBAN 1963-1966 Compatible For Oldsmobile 61-62 Compatible For CHEVY PICKUP SUBURBAN 63 64 65 66 Compatible For Pontiac Bonneville 61-66 Compatible For Chevy Truck C10 C20 C30 63-66 Compatible For CHEVY TRUCK C/K SERIES/PONTIAC PICKUP 61-66 Compatible For CHEVY GM C/K Truck 61-66 Why Choose Cubauto Radiator?1. Maximum cooling efficiency 2. High security and performance 3. Excellent aluminum material 4. Stability and durability 5. Drop-in installation 6. High temperature resistance 7. Enhanced protection package

• ♥Radiator Size: Core Size: 17-1/2"H x 25-1/4"W x 2 3/4"T / Overall Size: 23-3/8" H x 25-1/2" W; Compatible For 1961 1962 1963 1964 1965 1966 Chevy C10 C20 K10 K20 K30 Pickup
• ♥Easy To Install: Cubauto Brand-new radiator engineered and manufactured to meet original specifications for quick installation. Direct fit and built to last long with high quality aluminum core and tanks preventing corrosion.
• ♥Full aviation-aluminum craftsmanship, 100% welded by TIG; Trans cooler: Build-In; Trans Oil Cooler: ￠22*300*G1/4(Z) ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain.
• ♥High Quality: Cubauto 4 Row Aluminum Radiator is welded in vacuum brazing furnace, no epoxy, all item is 100% inspected and tested for quality assurance.
• ♥ 100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation
• Note: 100% Leak Tested, Downflow Radiator, Durability Tested; ONE YEAR WARRANTY for Every Item.If you have any questions, please feel free to contact us, Cubauto will try our best to help you.Do not hesitate to get one!
